TS-CE36-84WE2
- AR
Technical Datas:
Product code: TS-BA18WB
Power (wattage): 18W
Mounting type: Ceiling Surface Mounted

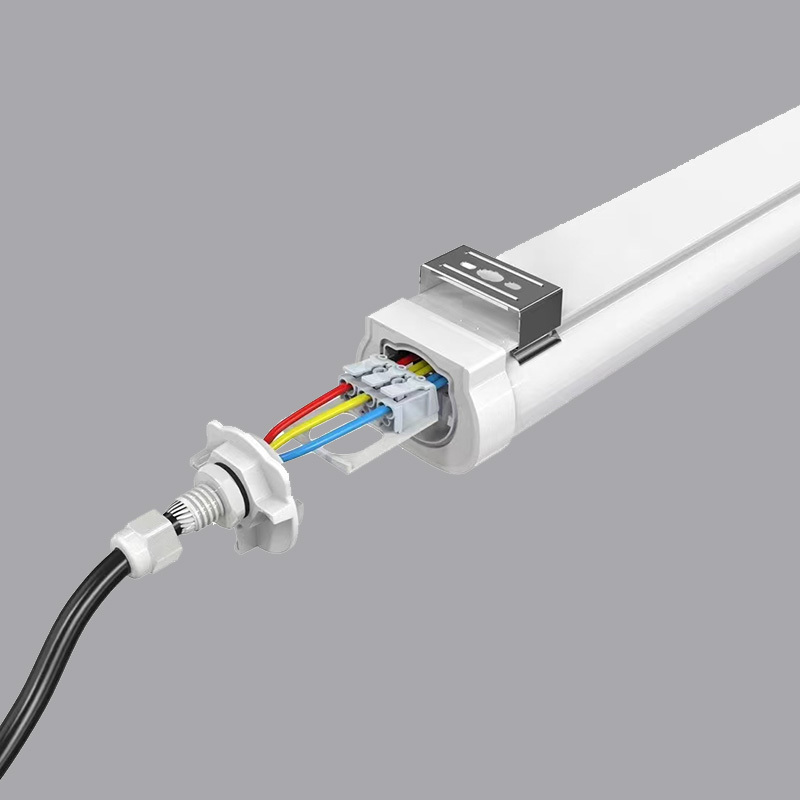

Connection: Both End have Connector and Linkable (Quick connection)
Length: 600MM
Input voltage: 220-240V AC 50/60HZ
LED Driver: Non-isolated driver
LED source: Epistar 2835 30-32lm/LED
LED quantities: 96pcs
Light Color: Warm white(3000K), Neutral White (4000K), White(5000K), Cool white(6000K)
LED Lumens: 2100lm+/-3%
Efficiency: 120lm/W
LED CRI: >80Ra
Beam angle: 180°
IP Rate: IP66
Body Color: White
Materials: PC body+Aluminium inside
Size (dimension): L600 x W83 x H60 mm
Operating Temp.: -50 ~ 75℃
Life Span: L70 B10 50.000h Tª=25°C
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick
 |
 |
  |
 |
| Model No. | TS-BA18WB | TS-BA36WB | TS-BA45WB |
| Wattage | 18W | 36W | 45W |
| IP Rate | IP65 Waterproof | ||
| Input Voltage | 85-265V AC 50/60 Hz | ||

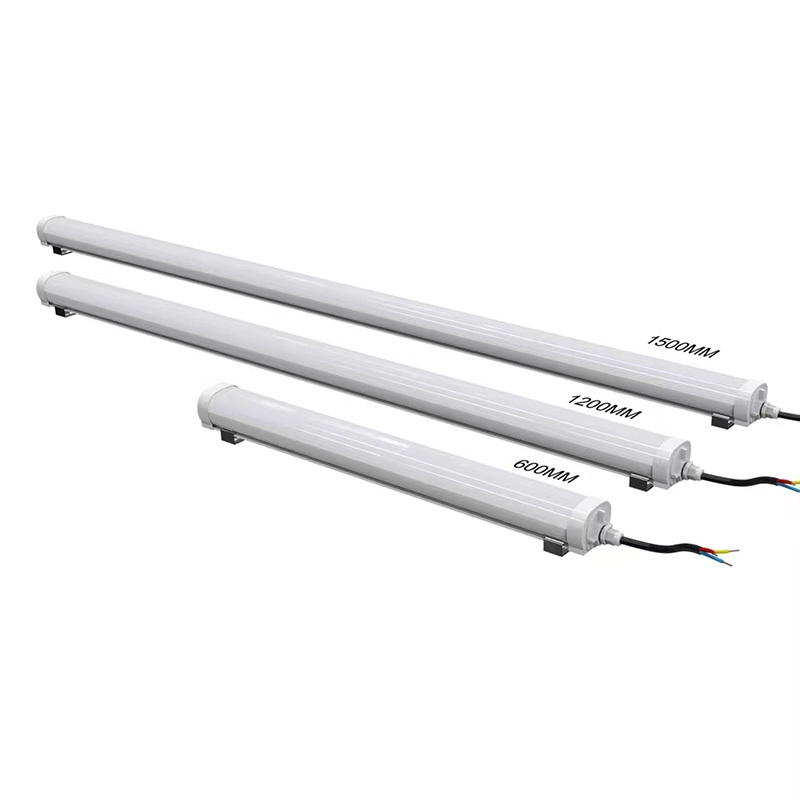

| Length | 600mm | 1200mm | 1500mm |
| LED Source | SMD 2835 Epistar chip | ||
| LED Quantity | 96pcs | 192pcs | 240pcs |
| CCT | Warm White (2700-3500K), Neutral White(4000-4500K), Cold White(5000-6500K) | ||
| Lumens | 2160lm | 4320lm | 5400lm |
| Efficiency | 120lm/W | ||
| Beam Angle | 180° | ||
| Material | PC body+Aluminium inside | ||
| Size | L600 x W83 x H60 mm | L1200 x W83 x H60 mm | L1500 x W83 x H60 mm |
| Body Color | White | ||
| Connection |
Both End have Connector and Linkable
|
||
| Operating Temp. |
-30 ~ 75℃
|
||
