TS-TR1020WO7
 |
 |
| Code | TS-BA24WB2 | TS-BA36WB2 | TS-BA45WB2 | TS-BA60WB2 |
|---|---|---|---|---|
| Rated Power | 24W | 36W | 45W | 60W |
| Length | 600MM(2ft) | 1200MM(4ft) | 1500MM(5ft) | 1500MM(5ft) |
| Efficiency | 120-130lm/W | 120-130lm/W | 120-130lm/W | 120-130lm/W |
| Lumens | 2880lm +/-5% | 4320lm +/-5% | 5400lm +/-5% | 7200lm +/-5% |
| Beam Angle | 160° | 160° | 160° | 160° |
| IP Rate | IP66 | IP66 | IP66 | IP66 |
| IK | IK10 | IK10 | IK10 | IK10 |
| Size | L60xW8.5xH7CM | L120xW8.5xH7CM | L150xW8.5xH7CM | L150xW8.5xH7CM |
| Code | TS-BA24WB2H | TS-BA36WB2H | TS-BA45WB2H | TS-BA60WB2H |
|---|---|---|---|---|
| Rated Power | 24W | 36W | 45W | 60W |
| Length | 600MM(2ft) | 1200MM(4ft) | 1500MM(5ft) | 1500MM(5ft) |
| Efficiency | 150-160lm/W | 150-160lm/W | 150-160lm/W | 150-160lm/W |
| Lumens | 3600lm +/-5% | 5400lm +/-5% | 6750lm +/-5% | 9000lm +/-5% |
| Beam Angle | 160° | 160° | 160° | 160° |
| IP Rate | IP66 | IP66 | IP66 | IP66 |
| IK | IK10 | IK10 | IK10 | IK10 |
| Size | L60xW8.5xH7CM | L120xW8.5xH7CM | L150xW8.5xH7CM | L150xW8.5xH7CM |

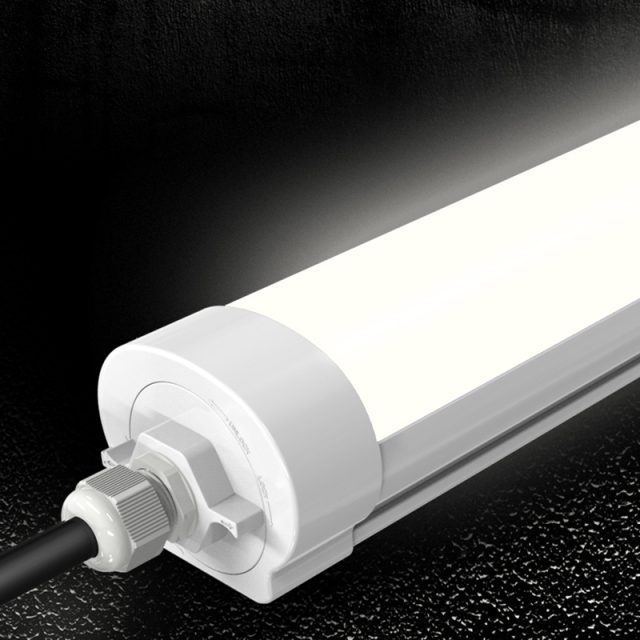

| Products Name | Best LED batten lights & car parking batten fixture |
|---|---|
| Body Color | White |
| Reflector Color | Milky cover |
| Materials | PC Body (anti-UV, UL94-V2, light transmittance 82-85%) |
| IP Rate | IP66 |
| IK Rate | IK10 |
| Flicker Free | Available |
| Installation | Surface / Suspended installation |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Philips / Osram |
| Dimmable | Non-DIM / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 120-160lm/W |
| Chip Brand | Bridgelux, Epistar, Lumileds Or Other |
| Color Render Index | Ra>80 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
