TS-CE36-84WE2
- AR

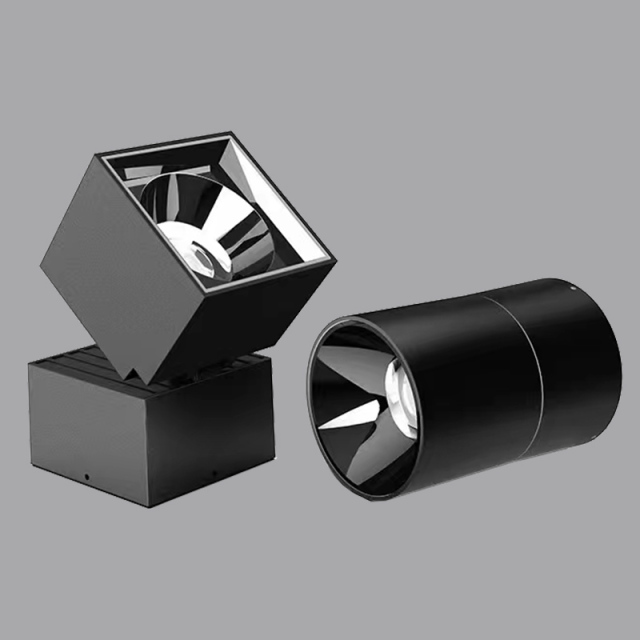

In the realm of modern home and commercial lighting, Ceiling Lights Square & Round LED stand as a testament to the harmonious blend of aesthetics, functionality, and energy efficiency. These versatile fixtures are designed to illuminate your spaces with a warm or cool glow, while seamlessly integrating into diverse interior decor styles. Our commitment to innovation and sustainability ensures that each product is not just a light source but a smart addition to your environment.
 |
 |
| Code | TS-DO12WSJR | TS-DO12WSJS |
|---|---|---|
| Rated Power | 12W | 12W |
| Shape | Round | Square |
| Input Current | 55mA@220V | 55mA@220V |
| Lumens | 1200lm +/-5% | 1200lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | D75x108MM | 75x75x108MM |
| Products Name | Ceiling Lights Square & Round LED |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Reflector Color | Matte Black/ Matte White / Matte Silver/ Bright Silver / Gun Black / Golden |
| Materials | Aluminum Body + Lens + PC Reflector |
| IP Rate | IP44 |
| Add Honeycomb | Not Available |
| Anti glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Surface Mounted Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud / Eaglerise / Kegu / Philips / Osram |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W (COB) , 120lm/W(SMD) |
| COB chip Brand | Bridgelux / CREE / Philips / Osram COB / Epistar SMD |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
