TS-CE36-84WE2
- AR

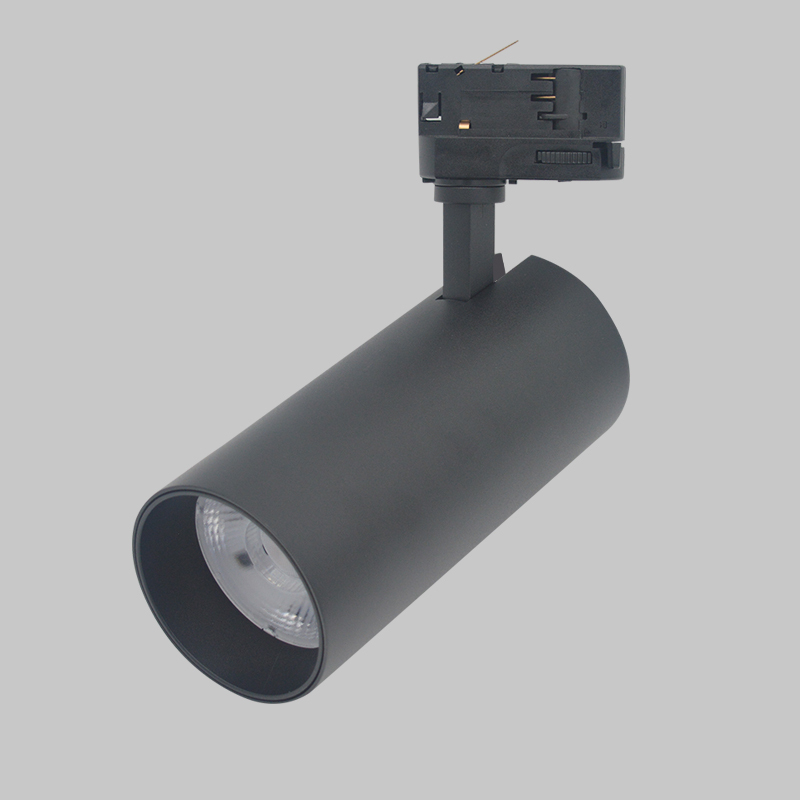

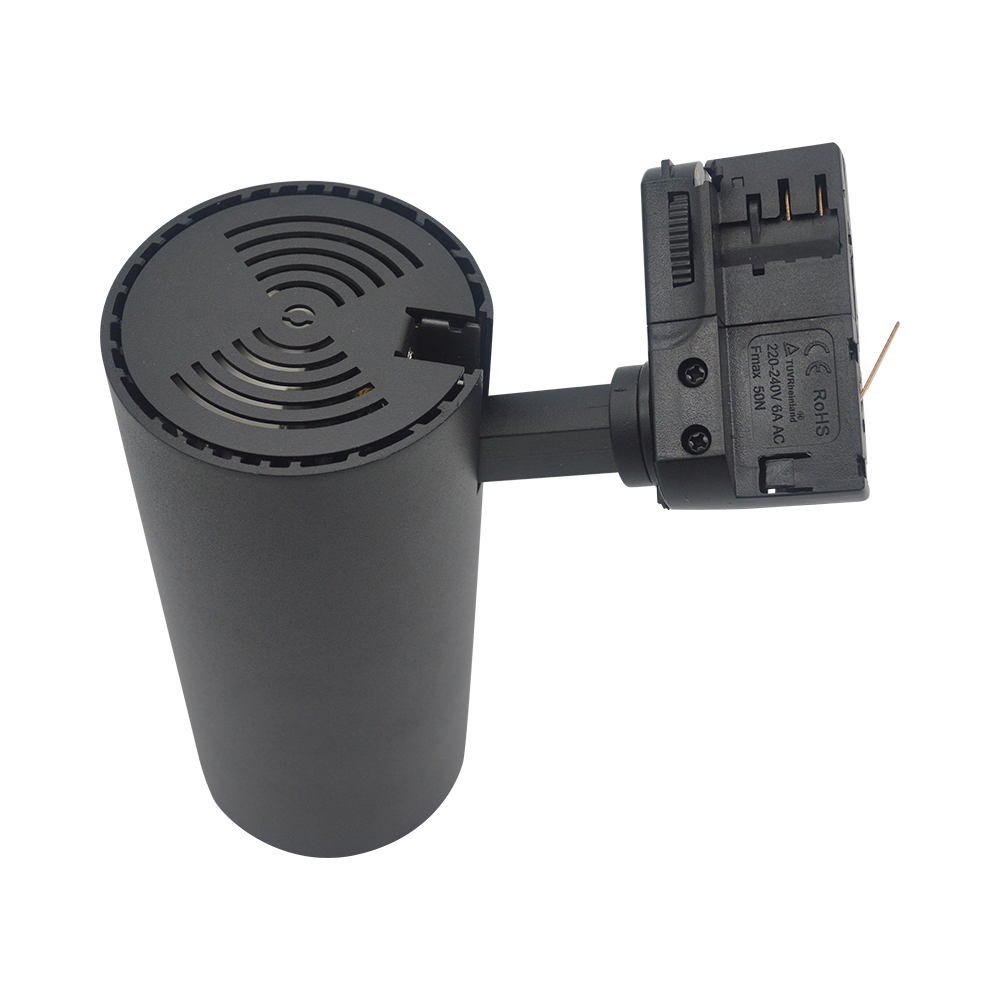

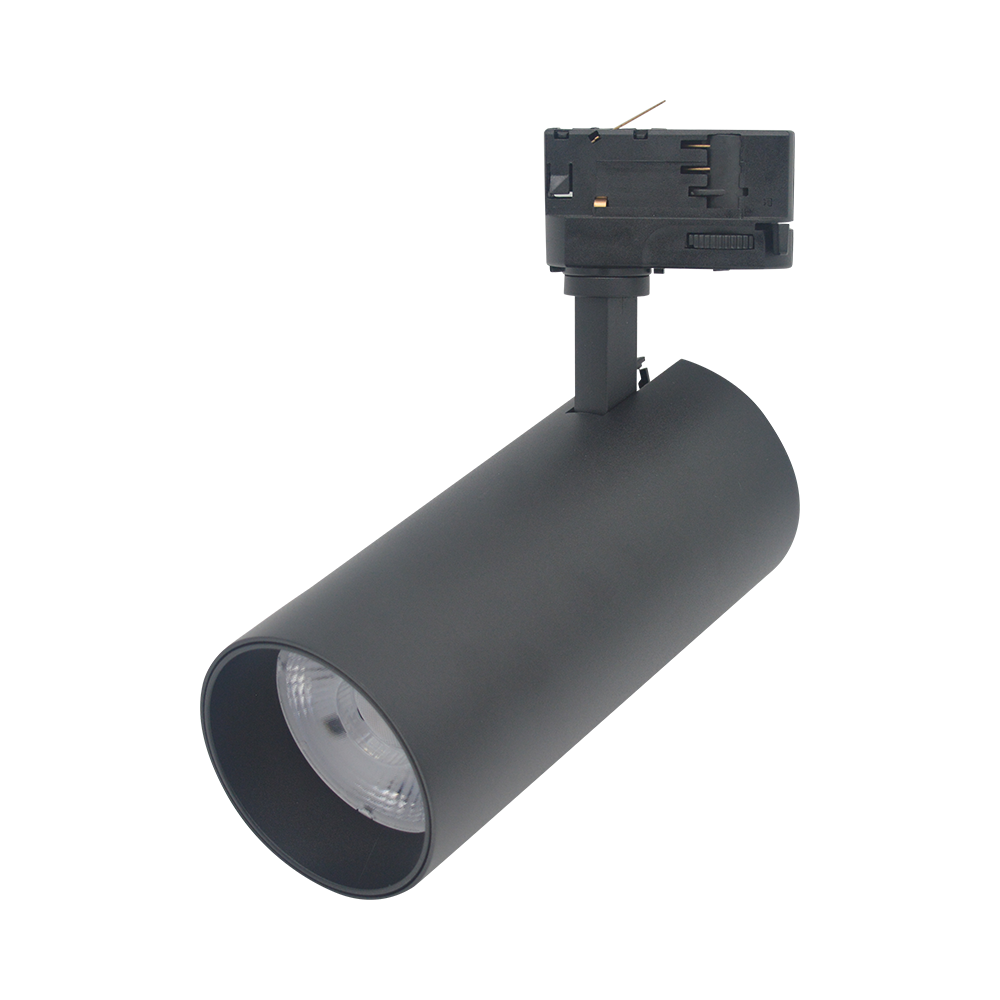

high quality black 30W ceiling track spotlights
Technical Datas:
Product code: TS-TR30WA
Power (wattage): 30W
Adaptor:Two Phase(2/3 wires) or Three Phase(Four wires)
Input voltage: 220-240V AC 50/60HZ
Flicker Free: Yes
Anti Glare: Yes (UGR<19)
Dimmable: Not Avaliable
LED source: COB 30W Bridgelux chip
LED quantities: 1pcs
Light Color: Warm white(3000K), Neutral White (4000K), White(5000K), Cool white(6000K)
LED Lumens: 3000lm+/-3%
LED CRI: >95Ra
Beam angle: 15°/24°/36°/60°
IP Rate: IP20
Body Color: Sandy White / Sandy Black
Materials: Aluminium body
Size (dimension): D80xH180MM (Not including Adaptor)
Operating Temp.: -30 ~ 75℃
Life Span: 50000 Hours
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick
|
|
|
|
|
|
| Model No. | TS-TR15WA | TS-TR20WA | TS-TR30WA | TS-TR40WA |
| Wattage | 15W | 20W | 30W | 40W |
| Adaptor Base | 2 Phase (2 wires / 3 wires ), 3 phase ( 4 wires ) | |||
| Input Voltage | 85-265V AC 50/60 Hz | |||
| Power Factor | PF > 0.95 | |||
| LED Source | 18W Bridgelux COB | 24W Bridgelux COB | 30W Bridgelux COB | 48W Bridelux COB |
| CCT | Warm White (2700-3500K), Neutral White(4000-4500K), Cold White(5000-6500K) | |||
| Lumens | 1500lm | 2000lm | 3000lm | 4000lm |
| CRI | CRI > 90 (Ra) | |||
| Beam Angle | 15° / 24° / 36° / 60° | |||
| LED Driver | Lifud / Eaglerise Brand | |||
| IP Rate | IP20 | |||
| Material | Aluminium Body + PMMA Lens | |||
| Size(not include adaptor) | D65*H150mm | D65*H180mm | D80*H180mm | D90*H180mm |
| Body Color | Sandy Black / Sandy White | |||
| Operating Temp. | -30℃ ~ 75℃ | |||
