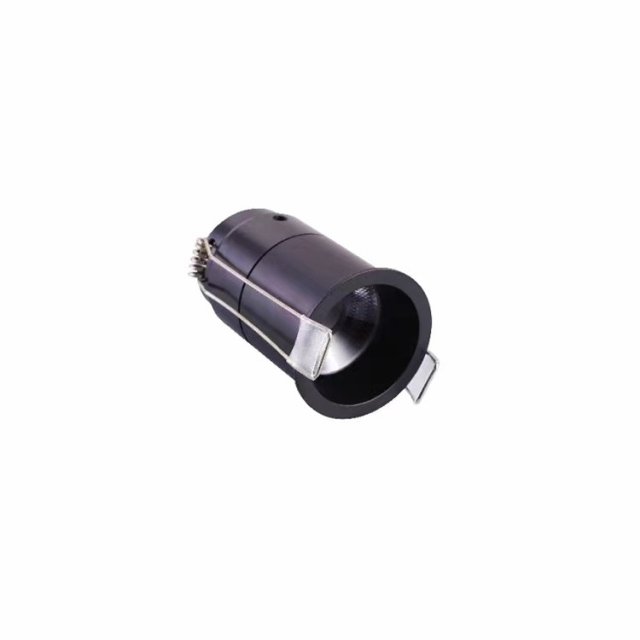

LED indoor spot lighting 5W 7W 9W

No.TS-SP5-9WA2
Elevate your space with our premium range of LED indoor spotlights, available in 5W, 7W, and 9W options. Featuring energy-saving LED technology, long lifespan, and customizable lighting options, these spotlights are perfect for residential and commercial applications, offering a stylish and functional solution to your lighting needs. Experience the difference with our high-lights today!
Watts:
5W
7W
9W
Color Temp.:
2700K
3000K
4000K
5000K
6000K
Dimmable:
Non-dimmable
Traic
0-10V
Dali
Tuya Smart
Hue Smart
  • وصف

LED Indoor Spot Lighting: Elevating Your Space with Precision Lighting

Introduction

In the realm of interior design and illumination, LED indoor spot lighting has emerged as a game-changer, offering unparalleled versatility, energy efficiency, and aesthetic appeal. Our range of 5W, 7W, and 9W LED indoor spotlights not only illuminates but also enhances the ambiance of any residential or commercial setting. Designed to cater to diverse lighting needs, these spotlights blend seamlessly into any décor while delivering focused, high light.


Products Information




LED indoor spot lighting LED indoor spot lighting LED indoor spot lighting


Code TS-SP05WA2 TS-SP07WA2 TS-SP09WA2
Rated Power 5W 7W 9W
Cut-Out D 30MM D 40MM D 50MM
Input Current 23mA@220V 32mA@220V 41mA@220V
Lumens 500lm +/-5% 700lm +/-5% 900lm +/-5%
Beam Angle 15°, 24°, 36° 15°, 24°, 36°,50° 15°, 24°, 36°,50°
Size D35xH64MM D45xH69MM D55xH71MM


Common Data



Products Name LED indoor spot lighting 5W 7W 9W
Body Color Sandy White / Sandy Black
Reflector Color Matte Black/ Matte White
Materials Aluminum Body + Lens
IP Rate IP44
Add Honeycomb Not Available
Anti glare Yes
UGR <19
Flicker Free Yes
Installation Recessed Type
Certificates CE-EMC, CE-LVD, RoHS, FCC, C-tick


Electrical Data



Working Voltage 220-240VAC / 100-277VAC
Frequency 50/60Hz
Power Factor(PF) >0.9
Driver Brand Lifud / Eaglerise / Kegu / Philips / Osram
Dimmable Non-DIM / TRIAC / 0-10V / Dali / Push Dimming
Total Harmonic Distortion(THD) ≤15%


Lighting Source Data



Color Temperature 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White
Lighting Efficiency 100lm/W (COB) , 120lm/W(SMD)
COB chip Brand Bridgelux / CREE / Philips / Osram COB / Epistar SMD
Color Render Index Ra>80 / Ra>90 / Ra>95
SDCM <5
Anti Glare Yes (UGR<19)
Flicker Free Yes


Application



Ambient Humidity 10%~90%
Ambient Temp. -20 ~ 50℃
Storage Temp. -30 ~ 80℃
Working Temp. < 60℃ (Ta=25℃)
Life Span >50000 Hours (LM80)
Warranty 3 Years
