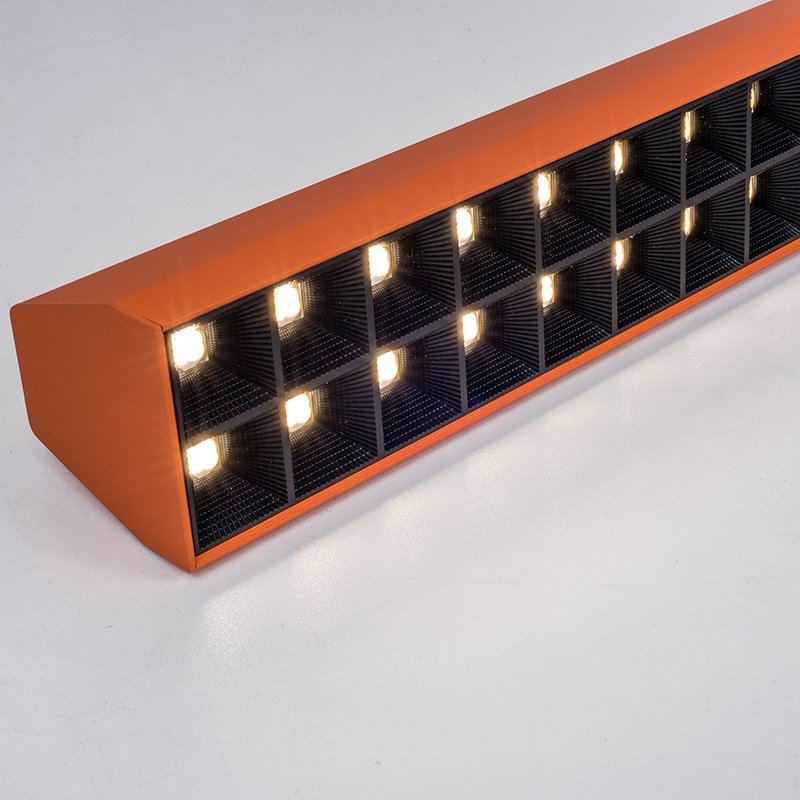

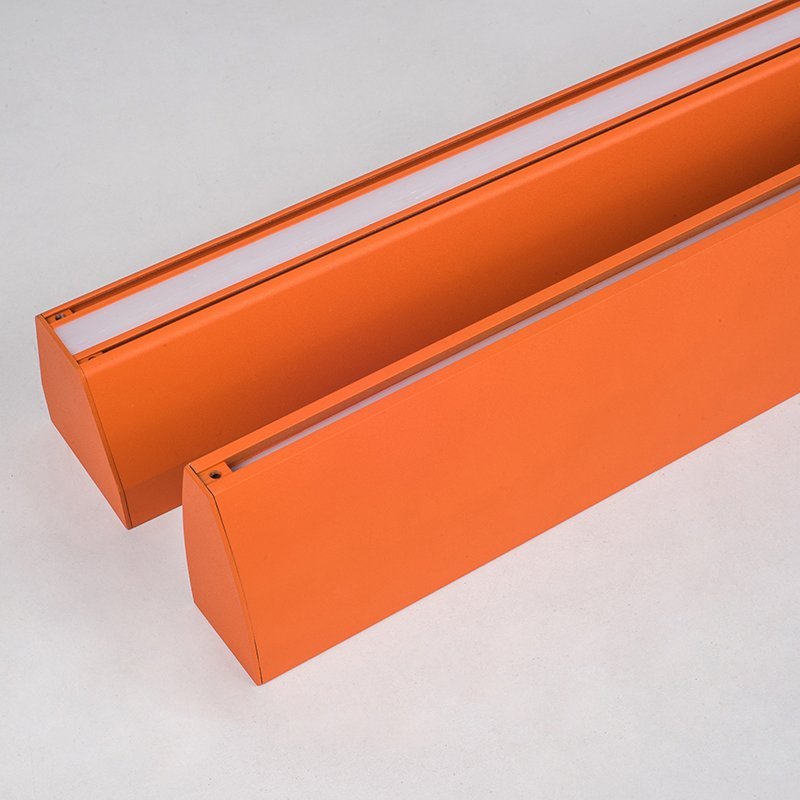

modern linear suspension LED lighting

No.TS-LI6565
  • وصف



Introduction



Products Information




Code TS-LI656512 TS-LI656515 TS-LI656518 TS-LI656520 TS-LI656524
DOWN Power 48W 60W 72W 80W 96W
UP Power 12W 15W 18W 20W 24W
Length 1200MM/4ft 1500MM/5ft 1800MM/6ft 2000MM/6.5ft 2400MM/8ft
Linkable Linkable Linkable Linkable Linkable Linkable
Efficiency 100-120lm/W 100-120lm/W 100-120lm/W 100-120lm/W 100-120lm/W
Down Lumens 5760lm+/-5% 7200lm+/-5% 8640lm+/-5% 9600lm+/-5% 11520lm+/-5%
Beam Angle 60°/85° 60°/85° 60°/85° 60°/85° 60°/85°
Cover Lens/Reflector Lens/Reflector Lens/Reflector Lens/Reflector Lens/Reflector
UGR <19 (lens) <19 (lens) <19 (lens) <19 (lens) <19 (lens)

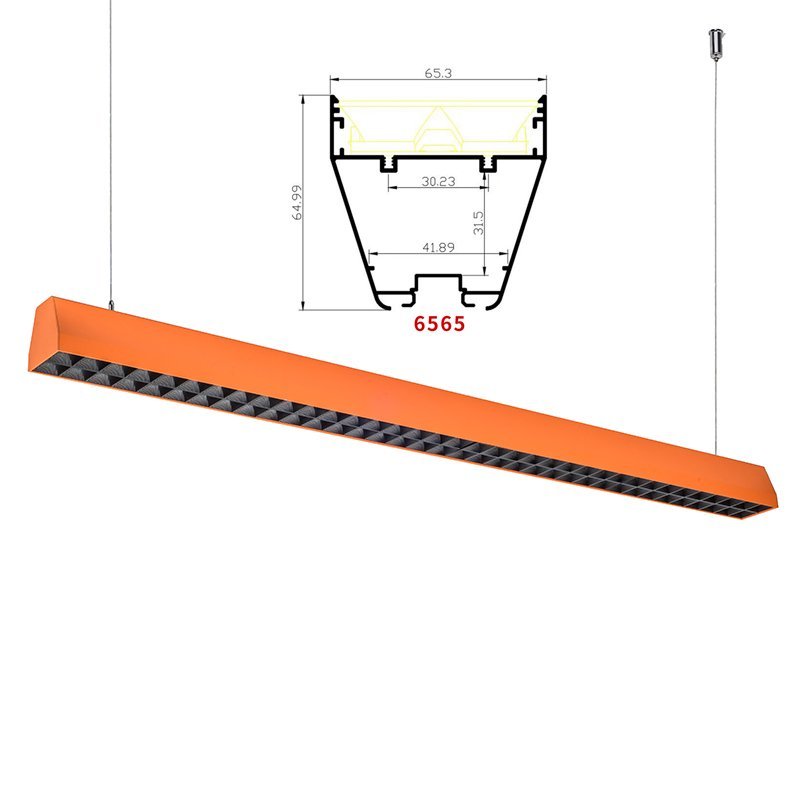

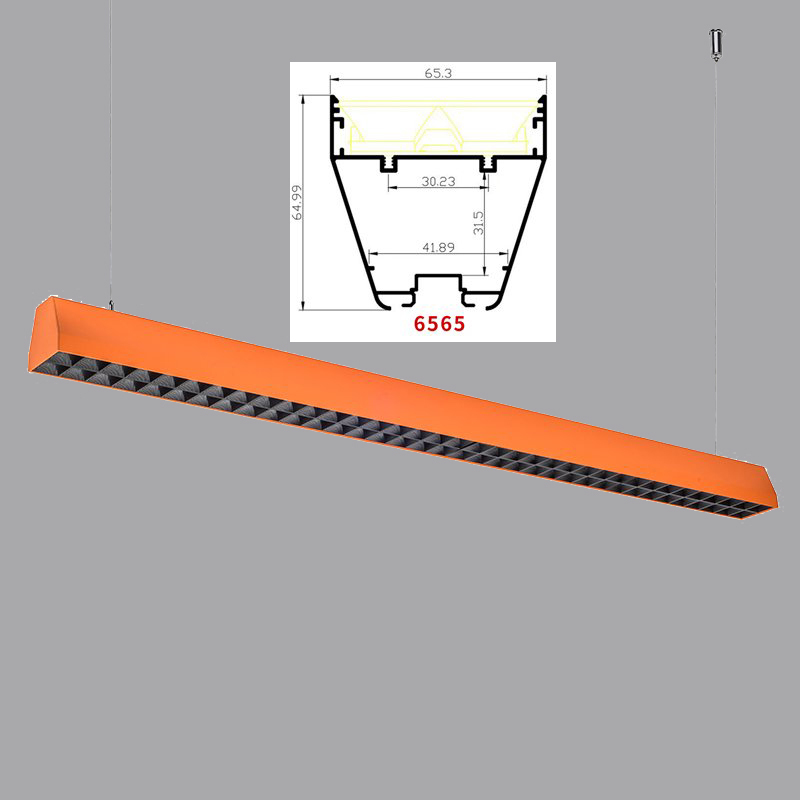

Size 6.5x6.5x120CM 6.5x6.5x150CM 6.5x6.5x180CM 6.5x6.5x200CM 6.5x6.5x240CM
Mounting type Suspended /Surface Suspended /Surface Suspended /Surface Suspended /Surface Suspended /Surface

Common Data



Products Name
Body Color Sandy White / Sandy Black

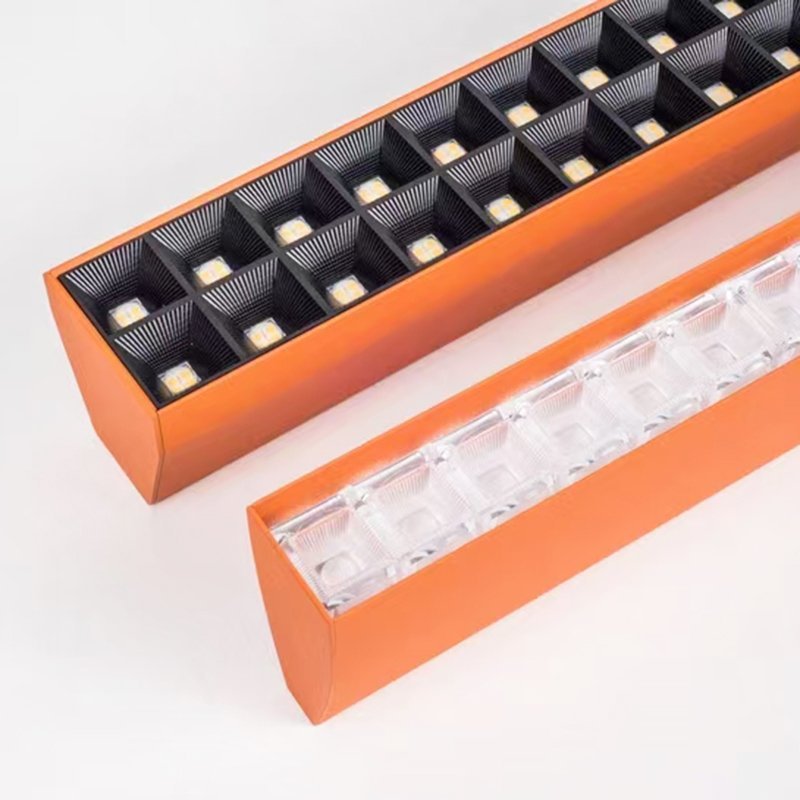

Diffuser Prismatic diffuser / Lens / Reflectors
Materials Aluminum Body + Prismatic diffuser
Linkable YES (Max 20pcs 1.5M linkable )
Beam Angle 100°
IP Rate IP44
Anti-glare Yes
UGR <19/22
Flicker Free Yes
Installation Suspended, Surface mounted
Certificates CE-EMC, CE-LVD, RoHS, FCC, C-tick


Electrical Data



Working Voltage 220-240VAC / 100-277VAC
Frequency 50/60Hz
Power Factor(PF) >0.9
Driver Brand Philips / Osram
Dimmable Non-DIM / 0-10V / Dali / Push Dimming
Total Harmonic Distortion(THD) ≤15%


Lighting Source Data



Colour Temperature 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White
Lighting Efficiency 100-110lm/W
Chip Brand Bridgelux, Epistar, Lumileds Or Other
Color Render Index Ra>80
SDCM <5
Anti Glare Yes, (UGR<19)
Flicker Free Yes


Application



Ambient Humidity 10%~90%
Ambient Temp. -20 ~ 50℃
Storage Temp. -30 ~ 80℃
Working Temp. < 60℃ (Ta=25℃)
Life Span >50000 Hours (LM80)
Warranty 3 Years
