TS-CE36-84WE2
- AR
Introduction
 |
 |
| Code | TS-L6675R12 | TS-L6675R15 | TS-L6675R18 | TS-L6675R20 | TS-L6675R24 |
|---|---|---|---|---|---|
| Rated Power | 36W | 45W | 54W | 60W | 72W |
| Length | 1200MM/4ft | 1500MM/5ft | 1800MM/6ft | 2000MM/6.5ft | 2400MM/8ft |
| Function | Linkable | Linkable | Linkable | Linkable | Linkable |
| Efficiency | 100lm/W | 100lm/W | 100lm/W | 100lm/W | 100lm/W |
| Lumens | 3600lm+/-5% | 4500lm+/-5% | 5400lm+/-5% | 6000lm+/-5% | 7200lm+/-5% |
| Beam angle | 100° | 100° | 100° | 100° | 100° |
| Cover | Milky/ Prism | Milky/ Prism | Milky/ Prism | Milky/ Prism | Milky/ Prism |
| UGR | <19 | <19 | <19 | <19 | <19 |

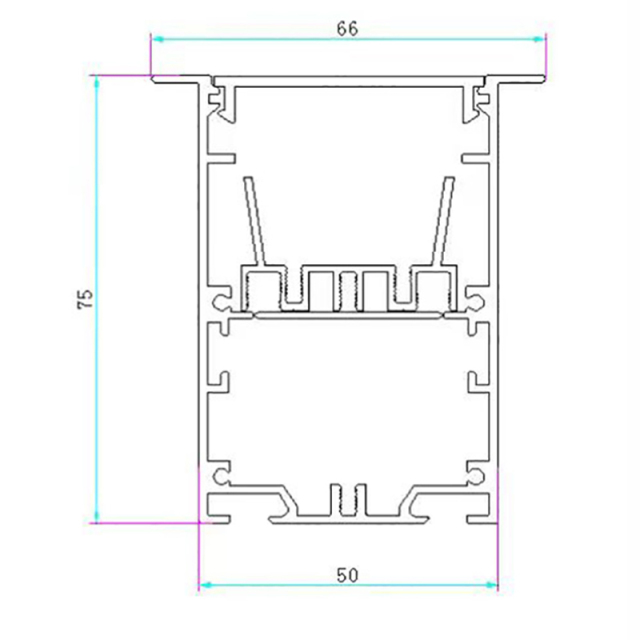

| Size | 5x7.5x120CM | 5x7.5x150CM | 5x7.5x180CM | 5x7.5x200CM | 5x7.5x240CM |
| Mounting type | Recessed | Recessed | Recessed | Recessed | Recessed |
| Products Name | |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Diffuser | Prismatic diffuser / Milky Diffuser |
| Materials | Aluminum Body + Prismatic diffuser |
| Linkable | YES (Max 20pcs 1.5M linkable ) |
| Beam Angle | 100° |
| IP Rate | IP44 |
| Anti-glare | Yes |
| UGR | <19/22 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Philips / Osram |
| Dimmable | Non-DIM / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Colour Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100-110lm/W |
| Chip Brand | Bridgelux, Epistar, Lumileds Or Other |
| Color Render Index | Ra>80 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
