TS-CE36-84WE2
- AR
In the realm of modern interior design, lighting fixtures play a pivotal role in setting the ambiance and enhancing the overall aesthetic appeal of any space. Surface mounted downlight fixtures, with their sleek design and versatile functionality, have emerged as a popular choice for both residential and commercial settings. These fixtures offer a seamless integration into ceilings, providing focused illumination while maintaining a clean and minimalist look.
 |
 |
| Code | TS-DO10WSE | TS-DO15WSE | TS-DO24WSE | TS-DO36WSE |
|---|---|---|---|---|
| Rated Power | 10W | 15W | 24W | 36W |
| Input Current | 45mA@220V | 68mA@220V | 109mA@220V | 164mA@220V |
| Lumens | 1000lm +/-5% | 1500lm +/-5% | 2400lm +/-5% | 3600lm +/-5% |
| Beam Angle | 12°,24°,36°,50° | 12°,24°,36°,50° | 12°,24°,36°,50° | 12°,24°,36°,50° |
| Size | D71xH105MM | D90xH115MM | D113x125MM | D140x150MM |
| Code | TS-DO40WSE | TS-DO50WSE | TS-DO60WSE | TS-DO80WSE |
|---|---|---|---|---|
| Rated Power | 40W | 50W | 60W | 80W |
| Input Current | 182mA@220V | 227mA@220V | 273mA@220V | 364mA@220V |
| Lumens | 4000lm +/-5% | 5000lm +/-5% | 6000lm +/-5% | 7600lm +/-5% |
| Beam Angle | 12°, 24°, 38°,50° | 12°, 24°, 38°,50° | 12°, 24°, 36° | 12°, 24°, 36° |
| Size | D140xH160MM | D140xH160MM | D170xH195MM | D170xH195MM |

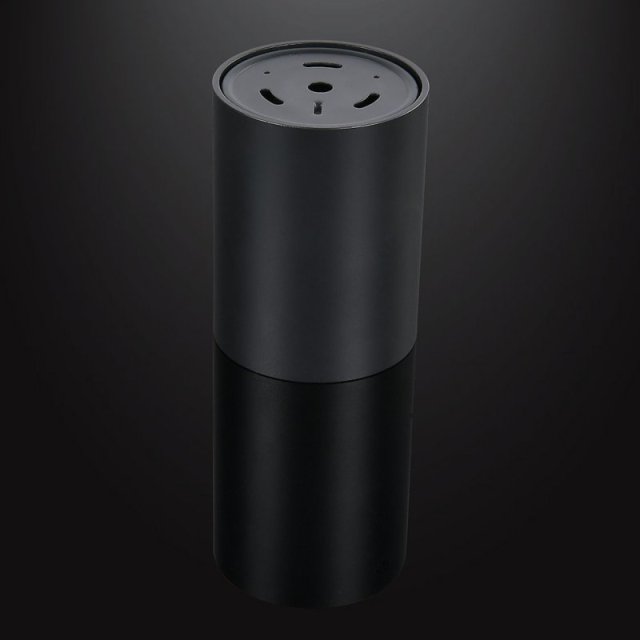

| Products Name | Surface Mounted Downlight Fixtures |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Reflector Color | Matte Black/ Matte White / Matte Silver/ Bright Silver / Gun Black / Golden |
| Materials | Aluminium Body + Lens + PC Reflector |
| IP Rate | IP44 |
| Add Honeycomb | Not Available |
| Anti glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Surface Mounted Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud / Eaglerise / Kegu / Philips / Osram |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W (COB) , 120lm/W(SMD) |
| COB chip Brand | Bridgelux / CREE / Philips / Osram COB / Epistar SMD |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
